QUERY · ISSUE
extmod/modframebuf.c framebuf1_text() does not clear pixels
This section of the code looks wrong:
if (vline_data & 1) { // only draw if pixel set
if (0 <= y && y < self->height) { // clip y
uint byte_pos = x0 + self->stride * ((uint)y >> 3);
if (col == 0) {
// clear pixel
self->buf[byte_pos] &= ~(1 << (y & 7));
} else {
// set pixel
self->buf[byte_pos] |= 1 << (y & 7);
}
}
If the pixel is not set, it should surely clear down the pixel in the framebuf as we don't know its prior contents. Further, if we happen to be drawing with col==0 to a part of the framebuf which is already zero, then nothing will be drawn, because in that circumstance the code never sets a pixel.
I hope I'm right on this observation from reviewing the code: I haven't had the opportunity to try it since my SSD1306 was DOA.
CANDIDATE · ISSUE
extmod/framebuf: There will be obvious aliasing when drawing circles or triangles
enhancement
I am increasing the color format of GS4_HLSB for framebuf.
I define GS4_HLSB as the color format opposite to GS4_HMSB.
And made the following changes to extmod/modframebuf.c:
diff --git a/extmod/modframebuf.c b/extmod/modframebuf.c
index 87f7609dd..feb9c69d6 100644
--- a/extmod/modframebuf.c
+++ b/extmod/modframebuf.c
@@ -64,6 +64,7 @@ typedef struct _mp_framebuf_p_t {
#define FRAMEBUF_GS8 (6)
#define FRAMEBUF_MHLSB (3)
#define FRAMEBUF_MHMSB (4)
+#define FRAMEBUF_GS4_HLSB (7)
// Functions for MHLSB and MHMSB
@@ -231,6 +232,57 @@ STATIC void gs8_fill_rect(const mp_obj_framebuf_t *fb, unsigned int x, unsigned
}
}
+// Functions for GS4_HLSB format
+
+STATIC void gs4_hlsb_setpixel(const mp_obj_framebuf_t *fb, unsigned int x, unsigned int y, uint32_t col) {
+ uint8_t *pixel = &((uint8_t *)fb->buf)[(x + y * fb->stride) >> 1];
+
+ if (x % 2) {
+ *pixel = ((uint8_t)col & 0x0f) | (*pixel & 0x0f);
+ } else {
+ *pixel = ((uint8_t)col << 4) | (*pixel & 0xf0);
+ }
+}
+
+STATIC uint32_t gs4_hlsb_getpixel(const mp_obj_framebuf_t *fb, unsigned int x, unsigned int y) {
+ if (x % 2) {
+ return ((uint8_t *)fb->buf)[(x + y * fb->stride) >> 1] >> 4;
+ }
+
+ return ((uint8_t *)fb->buf)[(x + y * fb->stride) >> 1] & 0x0f;
+}
+
+STATIC void gs4_hlsb_fill_rect(const mp_obj_framebuf_t *fb, unsigned int x, unsigned int y, unsigned int w, unsigned int h, uint32_t col) {
+ col &= 0x0f;
+ uint8_t *pixel_pair = &((uint8_t *)fb->buf)[(x + y * fb->stride) >> 1];
+ uint8_t col_shifted_left = col << 4;
+ uint8_t col_pixel_pair = col_shifted_left | col;
+ unsigned int pixel_count_till_next_line = (fb->stride - w) >> 1;
+ bool odd_x = (x % 2 == 1);
+
+ while (h--) {
+ unsigned int ww = w;
+
+ if (odd_x && ww > 0) {
+ *pixel_pair = (*pixel_pair & 0xf0) | col;
+ pixel_pair++;
+ ww--;
+ }
+
+ memset(pixel_pair, col_pixel_pair, ww >> 1);
+ pixel_pair += ww >> 1;
+
+ if (ww % 2) {
+ *pixel_pair = col_shifted_left | (*pixel_pair & 0x0f);
+ if (!odd_x) {
+ pixel_pair++;
+ }
+ }
+
+ pixel_pair += pixel_count_till_next_line;
+ }
+}
+
STATIC mp_framebuf_p_t formats[] = {
[FRAMEBUF_MVLSB] = {mvlsb_setpixel, mvlsb_getpixel, mvlsb_fill_rect},
[FRAMEBUF_RGB565] = {rgb565_setpixel, rgb565_getpixel, rgb565_fill_rect},
@@ -239,6 +291,7 @@ STATIC mp_framebuf_p_t formats[] = {
[FRAMEBUF_GS8] = {gs8_setpixel, gs8_getpixel, gs8_fill_rect},
[FRAMEBUF_MHLSB] = {mono_horiz_setpixel, mono_horiz_getpixel, mono_horiz_fill_rect},
[FRAMEBUF_MHMSB] = {mono_horiz_setpixel, mono_horiz_getpixel, mono_horiz_fill_rect},
+ [FRAMEBUF_GS4_HLSB] = {gs4_hlsb_setpixel, gs4_hlsb_getpixel, gs4_hlsb_fill_rect},
};
STATIC inline void setpixel(const mp_obj_framebuf_t *fb, unsigned int x, unsigned int y, uint32_t col) {
@@ -301,6 +354,7 @@ STATIC mp_obj_t framebuf_make_new(const mp_obj_type_t *type, size_t n_args, size
o->stride = (o->stride + 3) & ~3;
break;
case FRAMEBUF_GS4_HMSB:
+ case FRAMEBUF_GS4_HLSB:
o->stride = (o->stride + 1) & ~1;
break;
case FRAMEBUF_GS8:
@@ -885,6 +939,7 @@ STATIC const mp_rom_map_elem_t framebuf_module_globals_table[] = {
{ MP_ROM_QSTR(MP_QSTR_GS8), MP_ROM_INT(FRAMEBUF_GS8) },
{ MP_ROM_QSTR(MP_QSTR_MONO_HLSB), MP_ROM_INT(FRAMEBUF_MHLSB) },
{ MP_ROM_QSTR(MP_QSTR_MONO_HMSB), MP_ROM_INT(FRAMEBUF_MHMSB) },
+ { MP_ROM_QSTR(MP_QSTR_GS4_HLSB), MP_ROM_INT(FRAMEBUF_GS4_HLSB) },
};
STATIC MP_DEFINE_CONST_DICT(framebuf_module_globals, framebuf_module_globals_table);
@@ -897,4 +952,4 @@ const mp_obj_module_t mp_module_framebuf = {
MP_REGISTER_MODULE(MP_QSTR_framebuf, mp_module_framebuf);
#endif
-#endif // MICROPY_PY_FRAMEBUF
+#endif // MICROPY_PY_FRAMEBUF
\ No newline at end of file

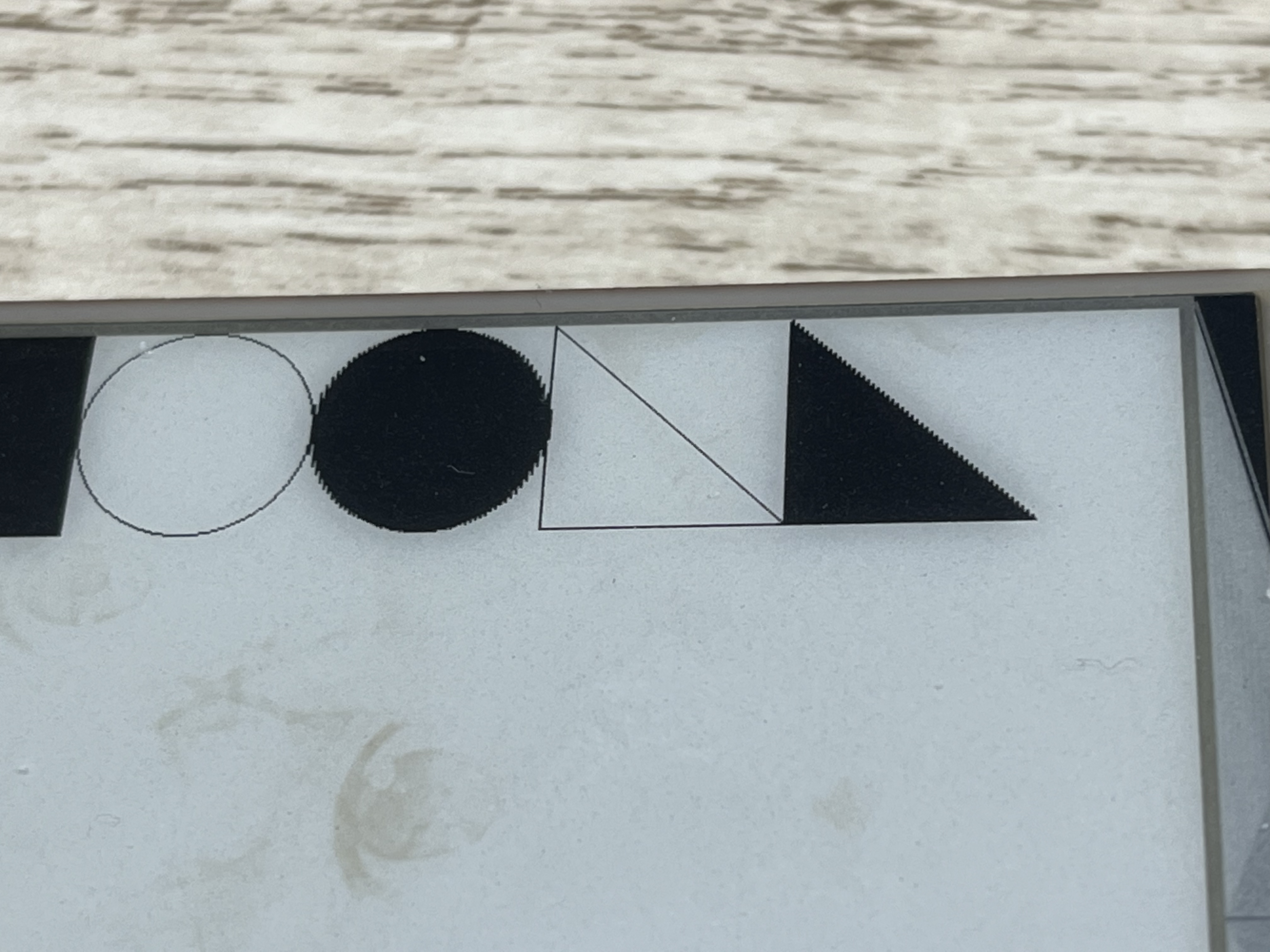

I found that the image drawn using the framebuf module has obvious aliasing.
However, I use the framebuf1 module below, and the drawn image seems to be smoother.
# from math import floor, ceil
# from collections import namedtuple
from zlib import decompress
'''
GFXfont = namedtuple("GFXfont", ["bitmap", "glyph", "intervals", \
"interval_count", "compressed", "advance_y", \
"ascender", "descender"])
UnicodeInterval = namedtuple("UnicodeInterval", ["first", "last", "offset"])
GFXglyph = namedtuple("GFXglyph", ["width", "height", "advance_x", "left", \
"top", "compressed_size", "data_offset"])
'''
class FrameBuffer():
'''This module provides a general frame buffer which can be used to create
bitmap images, which can then be sent to a display.
'''
def __init__(self, buffer: bytearray, width: int, height: int):
self.fb = buffer
self.width = width
self.height = height
def fill(self, color: int):
'''Fill the entire FrameBuffer with the specified color.
'''
color = 255 - color
color = color >> 4 | color
for i in range(0, self.width * int(self.height / 2)):
self.fb[i] = color
def pixel(self, x: int, y: int, color: int):
'''Draw a pixel a given framebuffer.
Args:
x: Horizontal position in pixels.
y: Vertical position in pixels.
color: The gray value of the line (0-255).
'''
if x < 0 or x >= self.width:
return
if y < 0 or y >= self.height:
return
color = 255 - color
pos = y * int(self.width / 2) + int(x / 2)
if int(x % 2):
self.fb[pos] = (self.fb[pos] & 0x0F) | (color & 0xF0)
else:
self.fb[pos] = (self.fb[pos] & 0xF0) | (color >> 4 & 0x0F)
def hline(self, x: int, y: int, length: int, color: int):
'''Draw a horizontal line to a given framebuffer.
Args:
x: Horizontal start position in pixels.
y: Vertical start position in pixels.
length: Length of the line in pixels.
color: The gray value of the line (0-255);
'''
for i in range(0, length):
self.pixel(x + i, y, color)
def vline(self, x: int, y: int, length: int, color: int):
'''Draw a horizontal line to a given framebuffer.
Args:
x: Horizontal start position in pixels.
y: Vertical start position in pixels.
length: Length of the line in pixels.
color: The gray value of the line (0-255);
'''
for i in range(0, length):
self.pixel(x, y + i, color)
def line(self, x0: int, y0: int, x1: int, y1: int, color: int):
'''Draw a line
Args:
x0 Start point x coordinate
y0 Start point y coordinate
x1 End point x coordinate
y1 End point y coordinate
color: The gray value of the line (0-255)
'''
if x0 == x1:
if (y0 > y1):
y0, y1 = self._swap_int(y0, y1)
self.vline(x0, y0, y1 - y0 + 1, color)
elif y0 == y1:
if x0 > x1:
x0, x1 = self._swap_int(x0, x1)
self.hline(x0, y0, x1 - x0 + 1, color)
else:
self._write_line(x0, y0, x1, y1, color)
def rect(self, x: int, y: int, w: int, h: int, color: int):
'''Draw a rectanle with no fill color
Args:
x: Top left corner x coordinate
y: Top left corner y coordinate
w: Width in pixels
h: Height in pixels
color: The gray value of the line (0-255);
'''
self.hline(x, y, w, color)
self.hline(x, y + h - 1, w, color)
self.vline(x, y, h, color)
self.vline(x + w - 1, y, h, color)
def fill_rect(self, x: int, y: int, w: int, h: int, color: int):
'''Draw a rectanle with fill color
Args:
x: Top left corner x coordinate
y: Top left corner y coordinate
w: Width in pixels
h: Height in pixels
color: The gray value of the line (0-255)
'''
for i in range(x, x + w):
self.vline(i, y, h, color)
def circle(self, x: int, y: int, r: int, color: int):
'''Draw a circle with given center and radius
Args:
x: Center-point x coordinate
y: Center-point y coordinate
r: Radius of the circle in pixels
color: The gray value of the line (0-255)
'''
f = 1 - r
ddF_x = 1
ddF_y = -2 * r
xx = 0
yy = r
self.pixel(x, y + r, color)
self.pixel(x, y - r, color)
self.pixel(x + r, y, color)
self.pixel(x - r, y, color)
while xx < yy:
if (f >= 0):
yy -= 1
ddF_y += 2
f += ddF_y
xx += 1
ddF_x += 2
f += ddF_x
self.pixel(x + xx, y + yy, color)
self.pixel(x - xx, y + yy, color)
self.pixel(x + xx, y - yy, color)
self.pixel(x - xx, y - yy, color)
self.pixel(x + yy, y + xx, color)
self.pixel(x - yy, y + xx, color)
self.pixel(x + yy, y - xx, color)
self.pixel(x - yy, y - xx, color)
def fill_circle(self, x: int, y: int, r: int, color: int):
'''Draw a circle with fill with given center and radius
Args:
x: Center-point x coordinate
y: Center-point y coordinate
r: Radius of the circle in pixels
color: The gray value of the line (0-255)
'''
self.vline(x, y - r, 2 * r + 1, color)
self._fill_circle_helper(x, y, r, 3, 0, color)
def triangle(self, x0: int, y0: int, x1: int, y1: int, x2: int, y2: int, color: int):
'''Draw a triangle with no fill color
Args:
x0: Vertex #0 x coordinate
y0: Vertex #0 y coordinate
x1: Vertex #1 x coordinate
y1: Vertex #1 y coordinate
x2: Vertex #2 x coordinate
y2: Vertex #2 y coordinate
color: The gray value of the line (0-255)
'''
self.line(x0, y0, x1, y1, color)
self.line(x1, y1, x2, y2, color)
self.line(x2, y2, x0, y0, color)
def fill_triangle(self, x0: int, y0: int, x1: int, y1: int, x2: int, y2: int, color: int):
'''Draw a triangle with color-fill
Args:
x0: Vertex #0 x coordinate
y0: Vertex #0 y coordinate
x1: Vertex #1 x coordinate
y1: Vertex #1 y coordinate
x2: Vertex #2 x coordinate
y2: Vertex #2 y coordinate
color: The gray value of the line (0-255)
'''
a = b = y = last = 0
if y0 > y1:
y0, y1 = self._swap_int(y0, y1)
x0, x1 = self._swap_int(x0, x1)
if y1 > y2:
y2, y1 = self._swap_int(y2, y1)
x2, x1 = self._swap_int(x2, x1)
if y0 > y1:
y0, y1 = self._swap_int(y0, y1)
x0, x1 = self._swap_int(x0, x1)
if y0 == y2:
a = b = x0
if x1 < a:
a = x1
elif x1 > b:
b = x1
if x2 < a:
a = x2
elif x2 > b:
b = x2
self.hline(a, y0, b - a + 1, color)
return
dx01 = x1 - x0
dy01 = y1 - y0
dx02 = x2 - x0
dy02 = y2 - y0
dx12 = x2 - x1
dy12 = y2 - y1
sa = sb = 0
last = y1 if y1 == y2 else y1 -1
for y in range(y0, last + 1):
a = x0 + int(sa / dy01)
b = x0 + int(sb / dy02)
sa += dx01
sb += dx02
if a > b:
a, b = self._swap_int(a, b)
self.hline(a, y, b - a + 1, color)
y = last + 1
sa = dx12 * (y - y1)
sb = dx02 * (y - y0)
for i in range(y, y2 + 1):
a = x1 + int(sa / dy12)
b = x0 + int(sb / dy02)
sa += dx12
sb += dx02
if (a > b):
a, b = self._swap_int(a, b)
self.hline(a, i, b - a + 1, color)
def text(self, gfx, s: str, x: int, y: int):
'''Write a (multi-line) string to FrameBuffer.
'''
line_start = x
a = s.splitlines()
for i in a:
x, y = self.writeln(gfx, i, x, y)
y += gfx.advance_y
x = line_start
return x, y
def writeln(self, gfx, s: str, x: int, y: int):
if s is None or len(s) == 0:
return
# x1 = y1 = w = h = 0
# tmp_cur_x = x
# tmp_cur_y = y
# tmp_cur_x, tmp_cur_y, x1, y1, w, h = self.get_text_bounds(gfx, s,
# tmp_cur_x, tmp_cur_y, x1, y1, w, h)
local_cursor_x = x
local_cursor_y = y
cursor_x_init = local_cursor_x
cursor_y_init = local_cursor_y
for ch in s:
local_cursor_x = self.draw_char(gfx, local_cursor_x, local_cursor_y,
ord(ch))
x += local_cursor_x - cursor_x_init
y += local_cursor_y - cursor_y_init
return x, y
def get_text_bounds(self, gfx: GFXfont, s: str, x: int, y: int, x1: int, y1: int, w: int, h: int):
if len(s) == 0:
return x, y, x, y, 0, 0
minx = 100000
miny = 100000
maxx = -1
maxy = -1
original_x = x
for ch in s:
x, y, minx, miny, maxx, maxy = self.get_char_bounds(gfx, ord(ch), x,
y, minx, miny, maxx, maxy)
x1 = min(original_x, minx)
w = maxx - x1
y1 = miny
h = maxy - miny
return x, y, x1, y1, w, h
def get_char_bounds(self, gfx: GFXfont, codepoint: int, x: int, y: int, minx: int, miny: int, maxx: int, maxy: int):
glyph = self.get_glyph(gfx, codepoint)
if glyph is None:
return
x1 = x + glyph.left
y1 = y + (glyph.top - glyph.height)
x2 = x1 + glyph.width
y2 = y1 + glyph.height
if x1 < minx:
minx = x1
if y1 < miny:
miny = y1
if x2 > maxx:
maxx = x2
if y2 > maxy:
maxy = y2
x += glyph.advance_x
return x, y, minx, miny, maxx, maxy
def get_glyph(self, gfx: GFXfont, code_point: int):
glyph = None
for interval in gfx.intervals:
if code_point >= interval.first and code_point <= interval.last:
glyph = gfx.glyph[interval.offset + (code_point - interval.first)]
return glyph
def draw_char(self, gfx: GFXfont, cursor_x: int, cursor_y: int, cp: int):
glyph = self.get_glyph(gfx, cp)
if glyph is None:
return
offset = glyph.data_offset
width = glyph.width
height = glyph.height
left = glyph.left
byte_width = int(width / 2) + width % 2
bitmap_size = byte_width * height
if gfx.compressed:
try:
bitmap = decompress(
bytes(gfx.bitmap[offset: offset + glyph.compressed_size]),
bufsize = bitmap_size)
except:
bitmap = decompress(
bytes(gfx.bitmap[offset: offset + glyph.compressed_size]),
bitmap_size)
else:
bitmap = gfx.bitmap[offset: offset + bitmap_size]
color_lut = [ max(0, min(15, 15 + c * int(-15 / 15))) for c in range(0, 16) ]
for y in range(0, height):
yy = cursor_y - glyph.top + y
if yy < 0 or yy >= self.height:
continue
start_pos = cursor_x + left
byte_complete = start_pos % 2
x = max(0, -start_pos)
max_x = min(start_pos + width, self.width)
for xx in range(start_pos, max_x):
buf_pos = yy * int(self.width/2) + int(xx / 2)
old = self.fb[buf_pos]
bm = bitmap[y * byte_width + int(x / 2)]
bm = bm & 0xF if x & 1 == 0 else bm >> 4
if xx & 1 == 0:
self.fb[buf_pos] = (old & 0xF0) | color_lut[bm]
else:
self.fb[buf_pos] = (old & 0x0F) | (color_lut[bm] << 4)
byte_complete = ~byte_complete
x += 1
cursor_x += glyph.advance_x
return cursor_x
def _fill_circle_helper(self, x0: int, y0: int, r: int, corners: int, delta: int, color: int):
f = 1 - r
ddF_x = 1
ddF_y = -2 * r
x = 0
y = r
px = x
py = y
delta += 1
while x < y:
if f >= 0:
y -= 1
ddF_y += 2
f += ddF_y
x += 1
ddF_x += 2
f += ddF_x
if x < (y + 1):
if corners & 1:
self.vline(x0 + x, y0 - y, 2 * y + delta, color)
if corners & 2:
self.vline(x0 - x, y0 - y, 2 * y + delta, color)
if y != py:
if corners & 1:
self.vline(x0 + py, y0 - px, 2 * px + delta, color)
if corners & 2:
self.vline(x0 - py, y0 - px, 2 * px + delta, color)
py = y
px = x
def _write_line(self, x0: int, y0: int, x1: int, y1: int, color: int):
'''Write a line. Bresenham's algorithm - thx wikpedia
Args:
x0 Start point x coordinate
y0 Start point y coordinate
x1 End point x coordinate
y1 End point y coordinate
color: The gray value of the line (0-255)
'''
steep = abs(y1 - y0) > abs(x1 - x0)
if steep:
x0, y0 = self._swap_int(x0, y0)
x1, y1 = self._swap_int(x1, y1)
if x0 > x1:
x0, x1 = self._swap_int(x0, x1)
y0, y1 = self._swap_int(y0, y1)
dx = x1 - x0
dy = abs(y1 - y0)
err = int(dx / 2)
ystep = 1 if y0 < y1 else -1
for i in range(x0, x1 + 1):
if steep:
self.pixel(y0, i, color)
else:
self.pixel(i, y0, color)
err -= dy
if err < 0:
y0 += ystep
err += dx
@staticmethod
def _swap_int(a: int, b: int):
return b, a
This is the effect of using framebuf1 module:
Because I found that the current framebuf module is very powerful, I don't need to maintain a framebuf1 module.
So I want to merge the color format of GS4_HLSB into the framebuf module.
Any suggestions are welcome! ! !
Thanks! ! !
