Vario / Forte motor

# Baratza Vario / Forte Motor drive parts and ratio

## Motor
Baratza have at least 3 variants of motor used in the Vario... and 120V/230V versions of each:

* PN: 1036 / 1037 D-shaft motor
* PN: 1058? / ?? Helical shaft motor
* PN: 6026 / 6027 Hybrid shaft motor

There's also two styles of motor enclosure used:
![motors](/api/file/getImage?fileId=622d6aebdfcbf9023602ed53)

not sure if these relate to specific part numbers above or not though, or it might be a  Mahlkonig vs Baratza difference.

1036 120V Motor D-Shaft (Vario/W, Forte) (use w/6394)
https://www.baratza.com/shop/120-v-motor-d-shaft

1037 230V Motor D-Shaft (Vario/W, Forte) (use w/6394)
https://www.espressogear.com/products/230v-motor-d-shaft

1058 120V helical
https://www.espressotec.com/amp/baratza-grinder-motor-v2-120v-1058/

6026 110v Motor (hybrid) -  DCT-M-002
https://www.baratza.com/shop/110v-motor

6027 230v Motor (hybrid) - DCT-M-003
https://www.coffeeparts.com.au/bt-6027-230v-motor

Note: the Sette 270 commonly has the DCT-M-004-D motor, marked as 14000RPM (https://imgur.com/a/7DAejoU).

I suspect that one/some of these motors may be build by Johnson https://shop.johnsonelectric.com/categories/dc-voltage-motor

The Intertek label on the left motor above is the regulatory body that's certified the motor for sale.

## Vario vs Forte
Both the current Vario and Forte parts lists have the 6026/6027 as the listed motor for use - the hybrid one is supposed to be used for all current models.

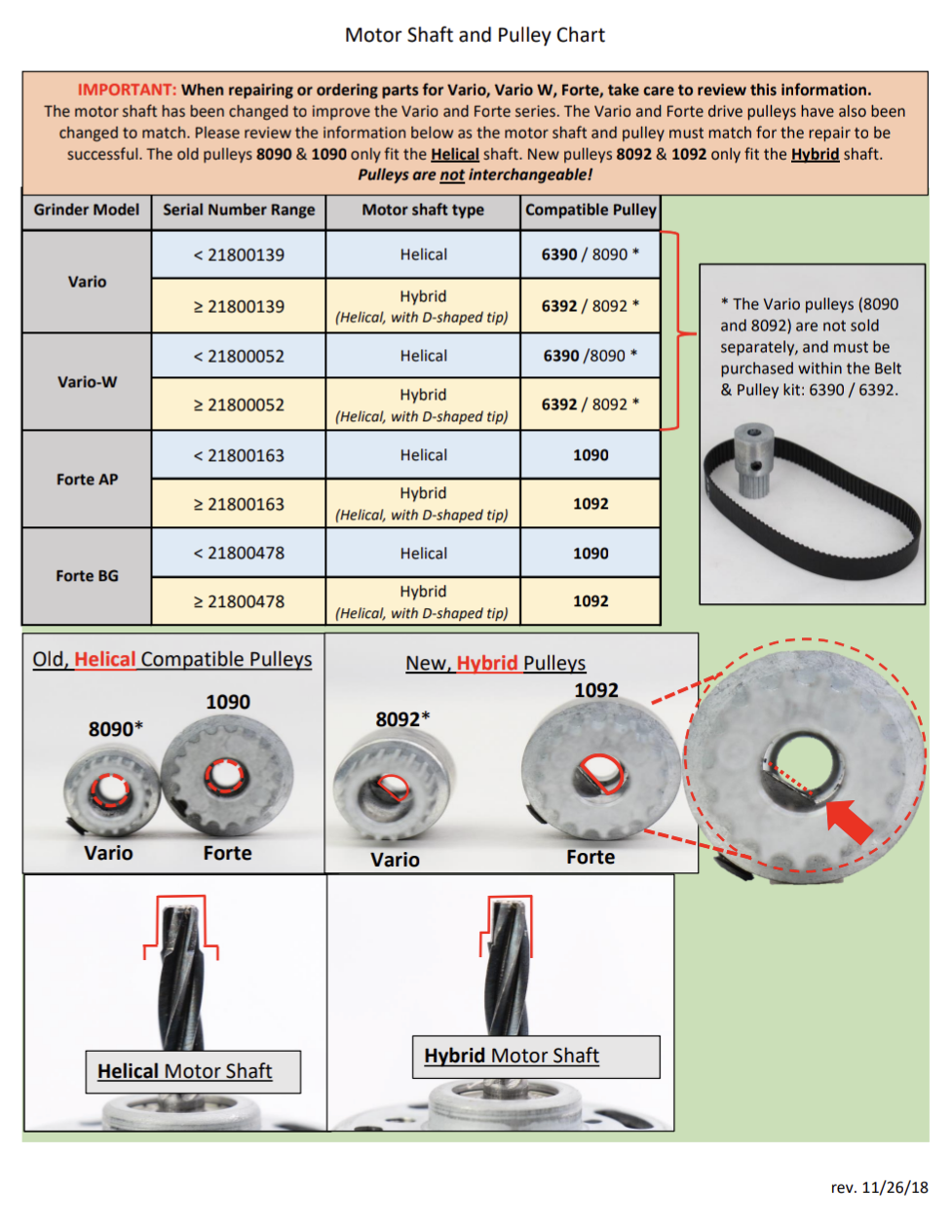

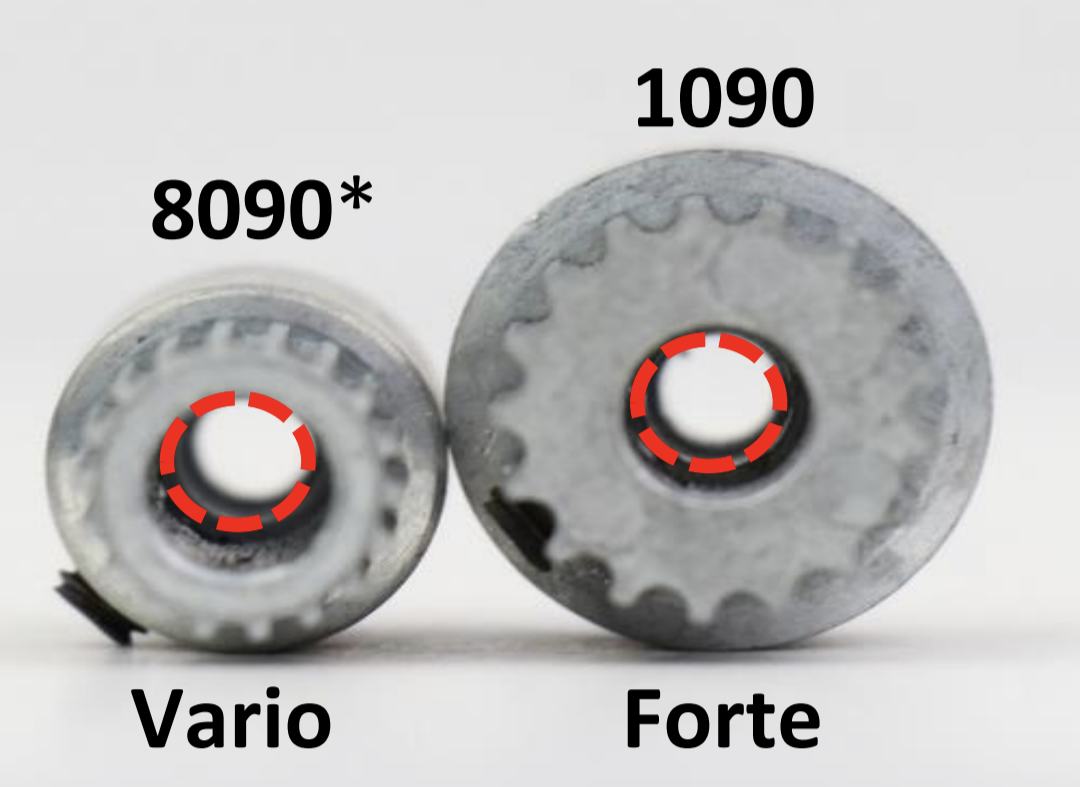

![motor pulleys](/api/file/getImage?fileId=622d9a4cdfcbf9023602ed55)

However, the Forte uses a different drive ratio, it runs faster with a wider tooth belt.

Vario:
* Motor pulley: 18 teeth
* Burr pulley: 96 teeth
Drive ratio: 5.33

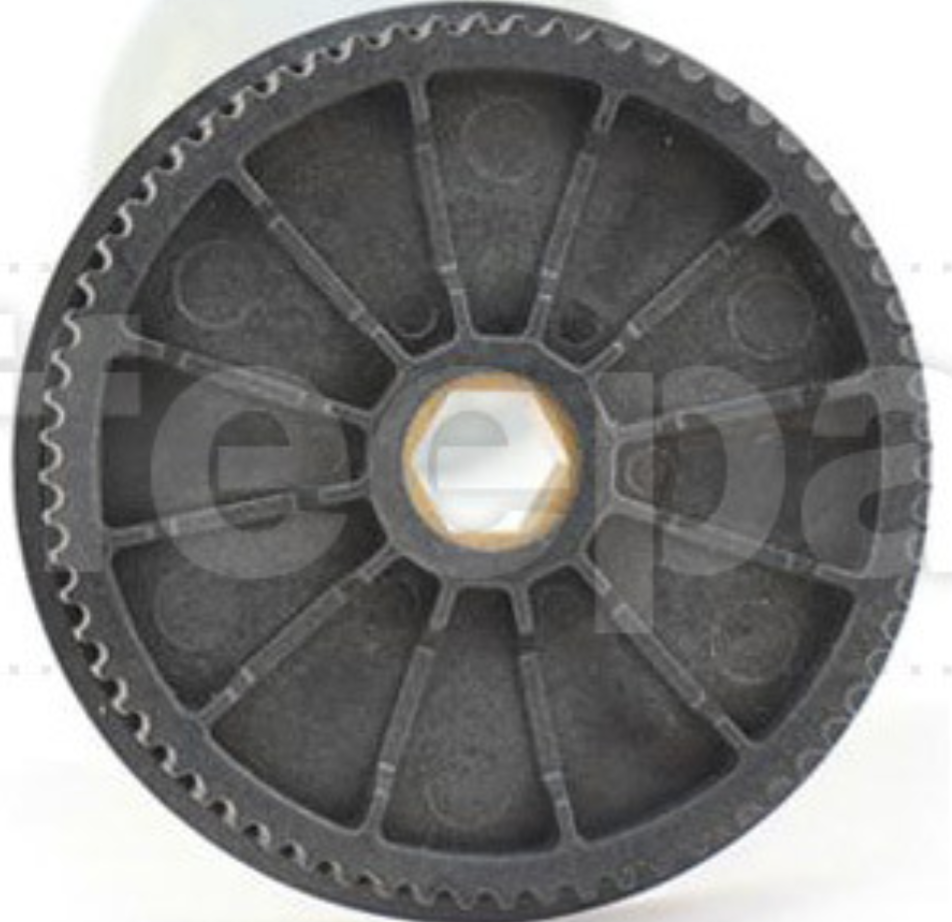

![Vario large pulley](/api/file/getImage?fileId=622e7cb4dfcbf9023602ed59)

Forte:
* Motor pulley: 17 teeth
* Burr pulley: 68 teeth
Drive ratio: 4.0

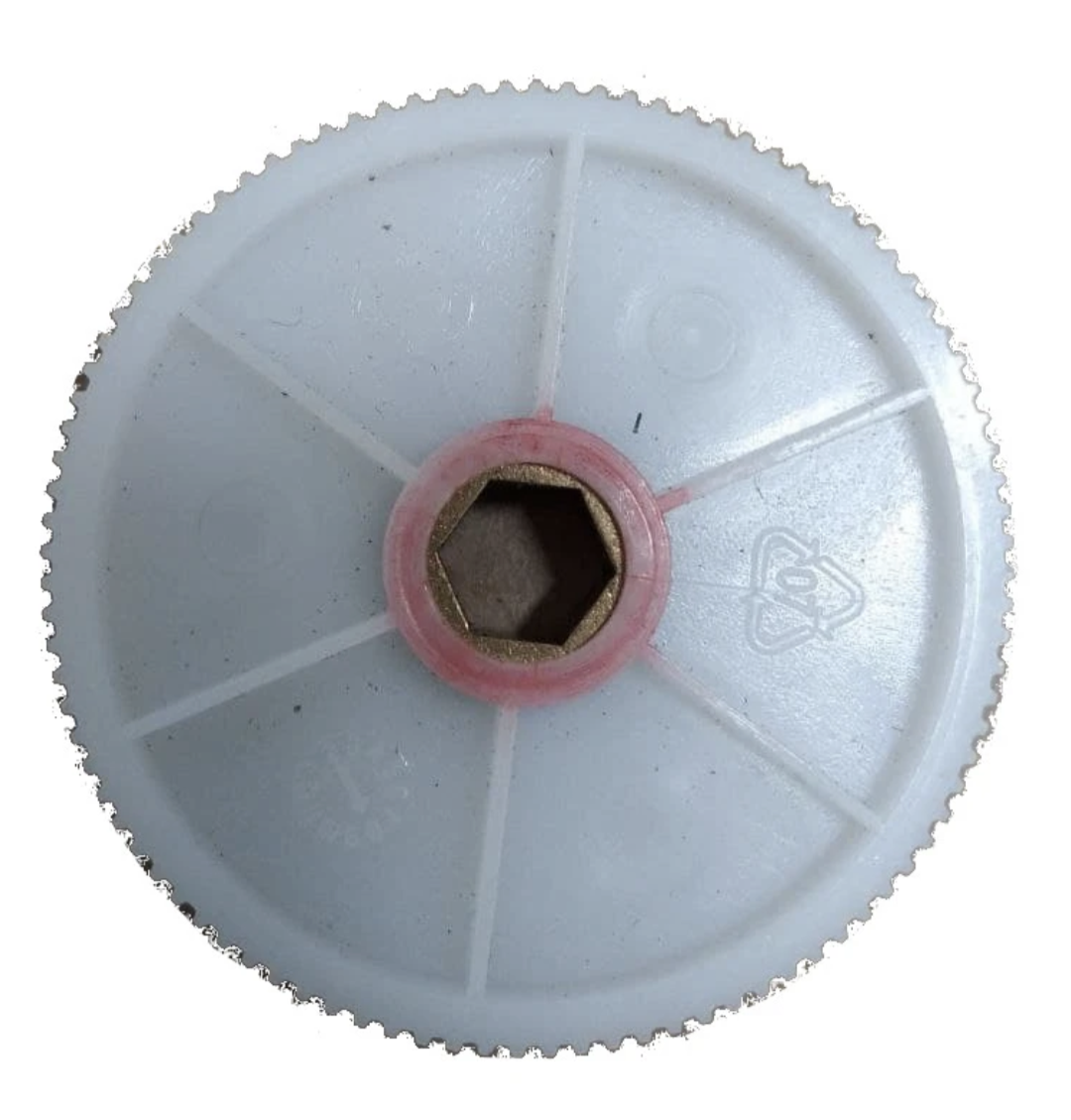

![Forte main drive pulley](/api/file/getImage?fileId=622e7cd3dfcbf9023602ed5a)

![motor pulleys](/api/file/getImage?fileId=622d9b6bdfcbf9023602ed56)

In Australia at least it's easy to get the Forte drive:
* https://www.coffeeparts.com.au/bt-1056-main-drive-pulley-with-metal-sleeve
* https://www.coffeeparts.com.au/bt-1090-gt3-motor-drive-pulley
* https://www.coffeeparts.com.au/bt-1027-gt3-belt
* https://baratza.com/wp-content/uploads/2021/02/forte-plev-v4-020421.pdf

### Vario belt
Model: B113MXL - 9
Pitch: 2.032mm (0.08″)

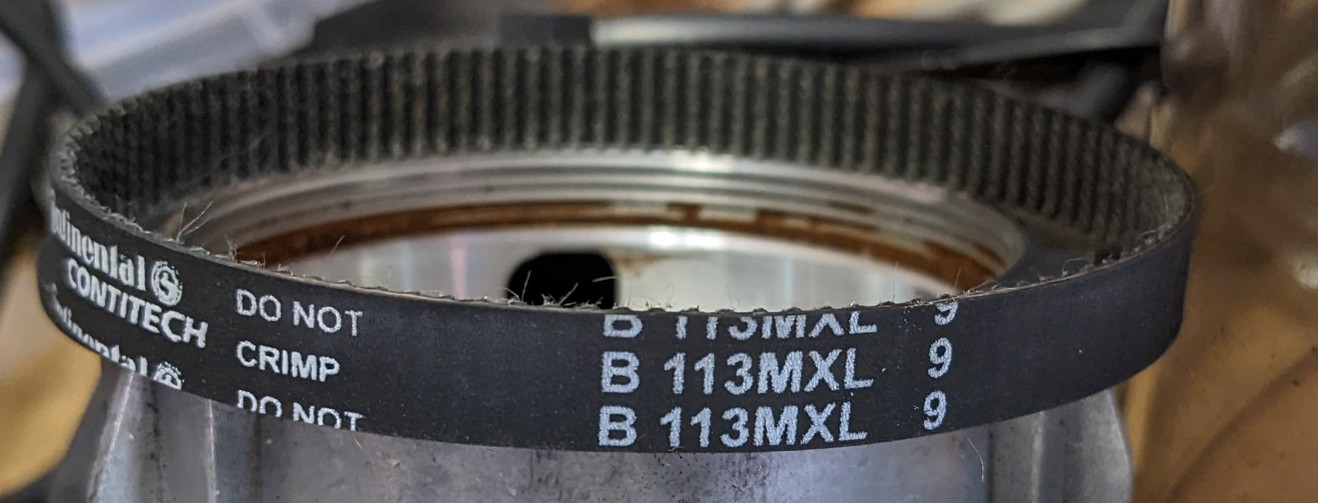

![Vario belt](/api/file/getImage?fileId=622e7fbddfcbf9023602ed5b)
https://vbeltoutlet.com/product/b113mxl-timing-belt-replacement-113-teeth/

### Forte belt
Commonly called "GT3 Belt"
Model: 3MR 240
Pitch: 3mm

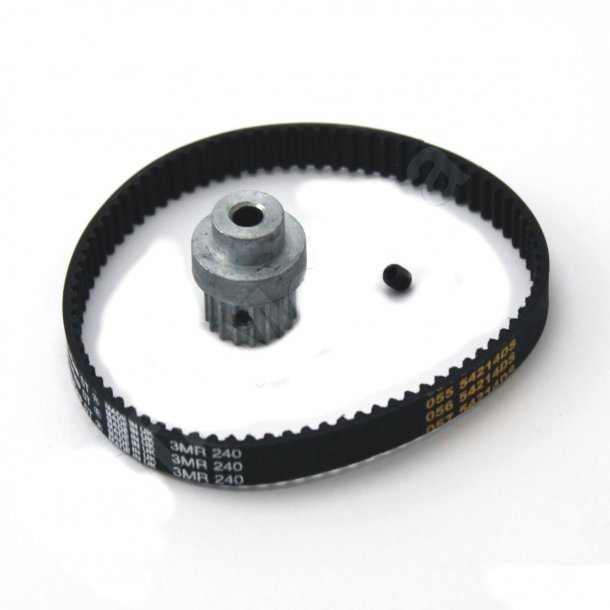

![Forte belt](/api/file/getImage?fileId=622e8508dfcbf9023602ed5c)
https://www.biedlers-belts.com/gates-3mr-240-09-belt.html
