Baratza Vario / Forte Motor drive parts and ratio Link to heading
Motor Link to heading
Baratza have at least 3 variants of motor used in the Vario… and 120V/230V versions of each:
* PN: 1036 / 1037 D-shaft motor * PN: 1058? / ?? Helical shaft motor * PN: 6026 / 6027 Hybrid shaft motor
There’s also two styles of motor enclosure used:
not sure if these relate to specific part numbers above or not though, or it might be a Mahlkonig vs Baratza difference.
1036 120V Motor D-Shaft (Vario/W, Forte) (use w/6394) https://www.baratza.com/shop/120-v-motor-d-shaft
1037 230V Motor D-Shaft (Vario/W, Forte) (use w/6394) https://www.espressogear.com/products/230v-motor-d-shaft
1058 120V helical https://www.espressotec.com/amp/baratza-grinder-motor-v2-120v-1058/
6026 110v Motor (hybrid) - DCT-M-002 https://www.baratza.com/shop/110v-motor
6027 230v Motor (hybrid) - DCT-M-003 https://www.coffeeparts.com.au/bt-6027-230v-motor
Note: the Sette 270 commonly has the DCT-M-004-D motor, marked as 14000RPM (https://imgur.com/a/7DAejoU).
I suspect that one/some of these motors may be build by Johnson https://shop.johnsonelectric.com/categories/dc-voltage-motor
The Intertek label on the left motor above is the regulatory body that’s certified the motor for sale.
Vario vs Forte Link to heading
Both the current Vario and Forte parts lists have the 6026/6027 as the listed motor for use - the hybrid one is supposed to be used for all current models.
However, the Forte uses a different drive ratio, it runs faster with a wider tooth belt.
Vario:

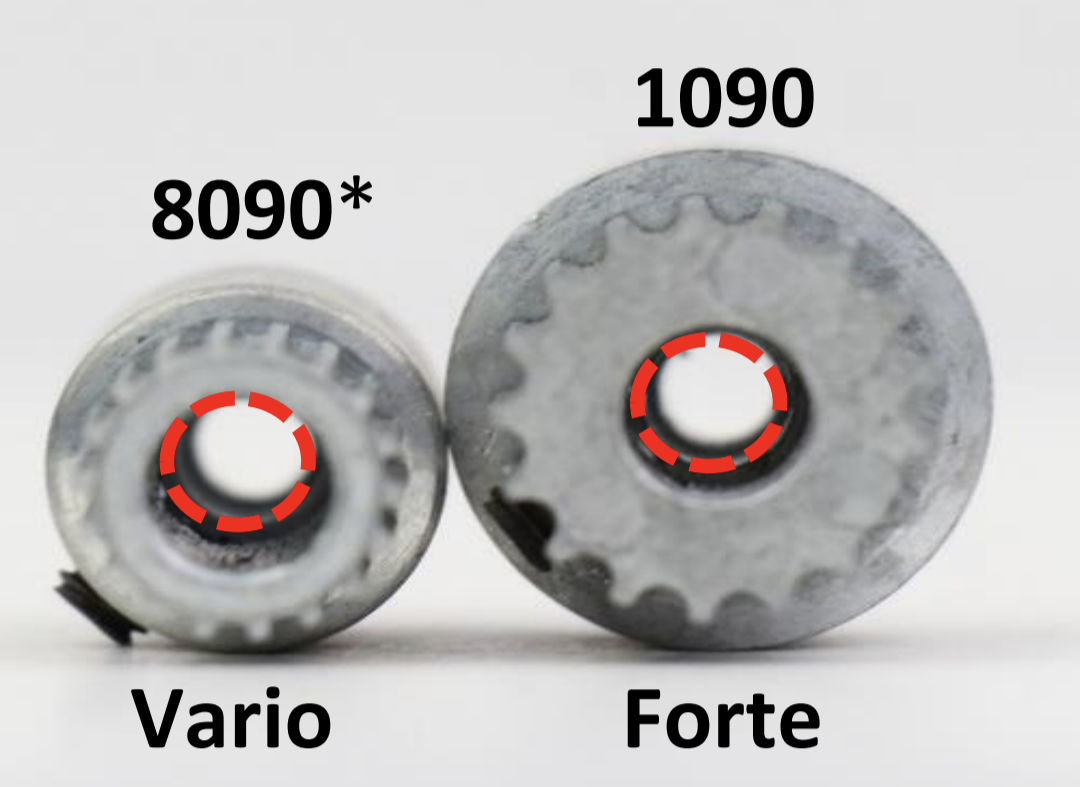

* Motor pulley: 18 teeth
* Burr pulley: 96 teeth
Drive ratio: 5.33
Forte:
* Motor pulley: 17 teeth

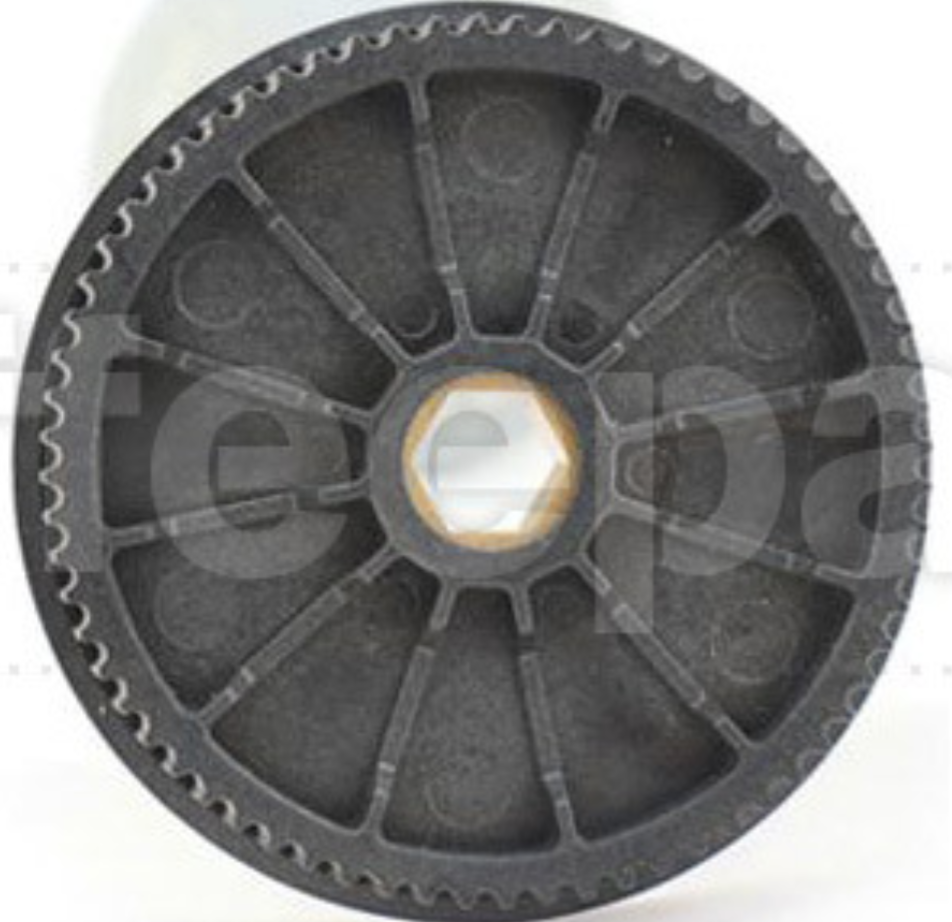

* Burr pulley: 68 teeth
Drive ratio: 4.0
In Australia at least it’s easy to get the Forte drive: * https://www.coffeeparts.com.au/bt-1056-main-drive-pulley-with-metal-sleeve * https://www.coffeeparts.com.au/bt-1090-gt3-motor-drive-pulley * https://www.coffeeparts.com.au/bt-1027-gt3-belt * https://baratza.com/wp-content/uploads/2021/02/forte-plev-v4-020421.pdf

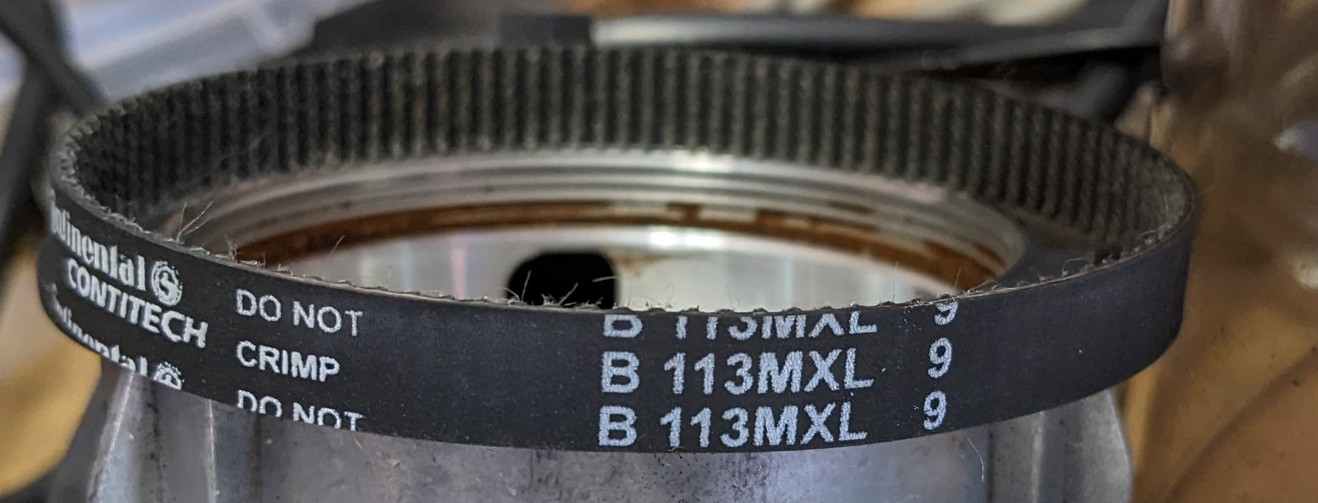

Vario belt Link to heading
Model: B113MXL - 9
Pitch: 2.032mm (0.08″)
https://vbeltoutlet.com/product/b113mxl-timing-belt-replacement-113-teeth/

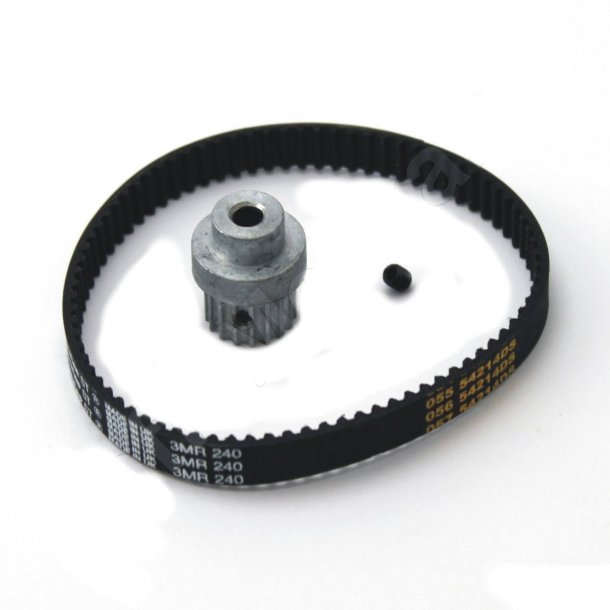

Forte belt Link to heading
Commonly called “GT3 Belt”
Model: 3MR 240
Pitch: 3mm
https://www.biedlers-belts.com/gates-3mr-240-09-belt.html
